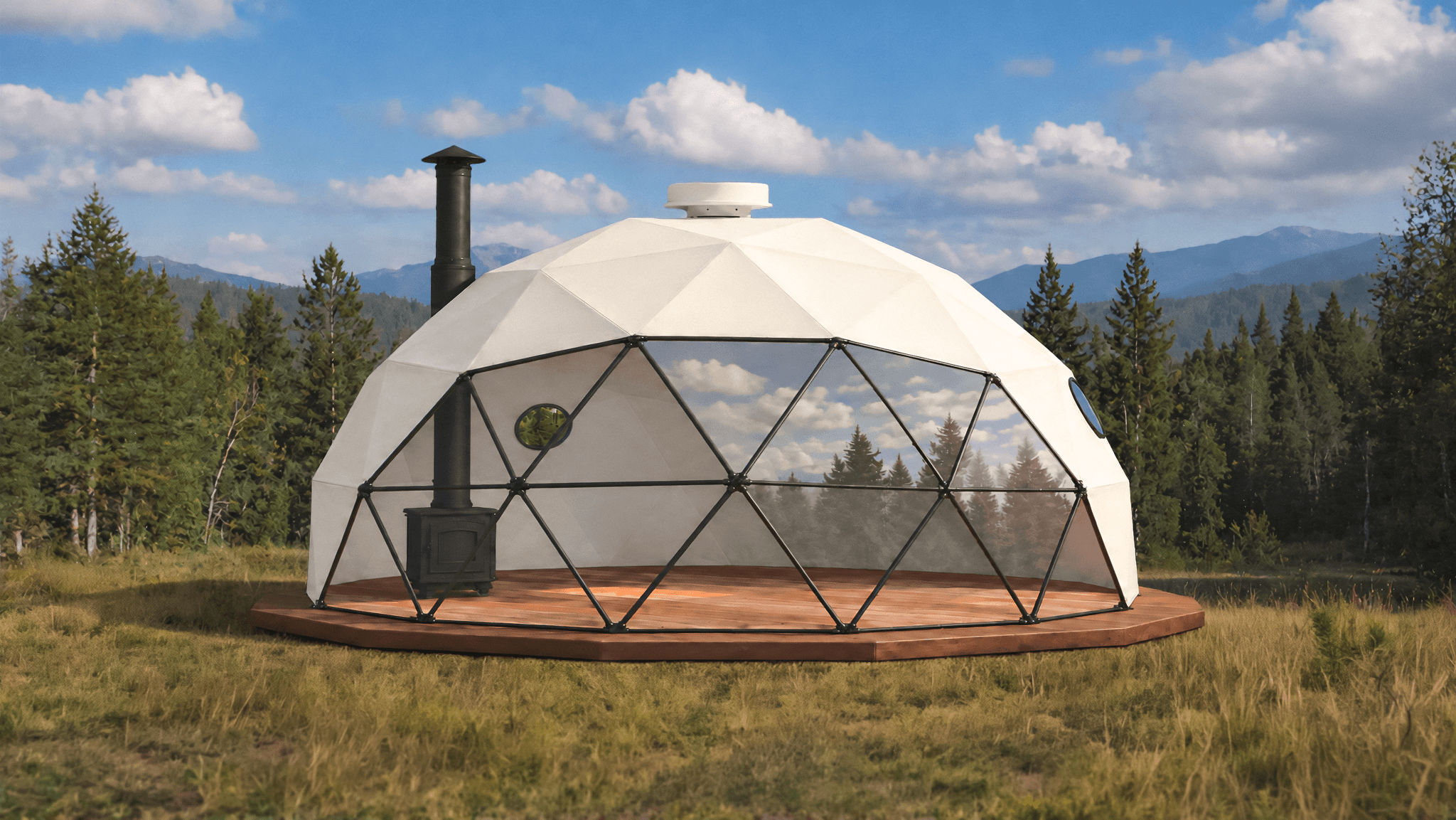

9m Stargazer Geodesic Dome
About

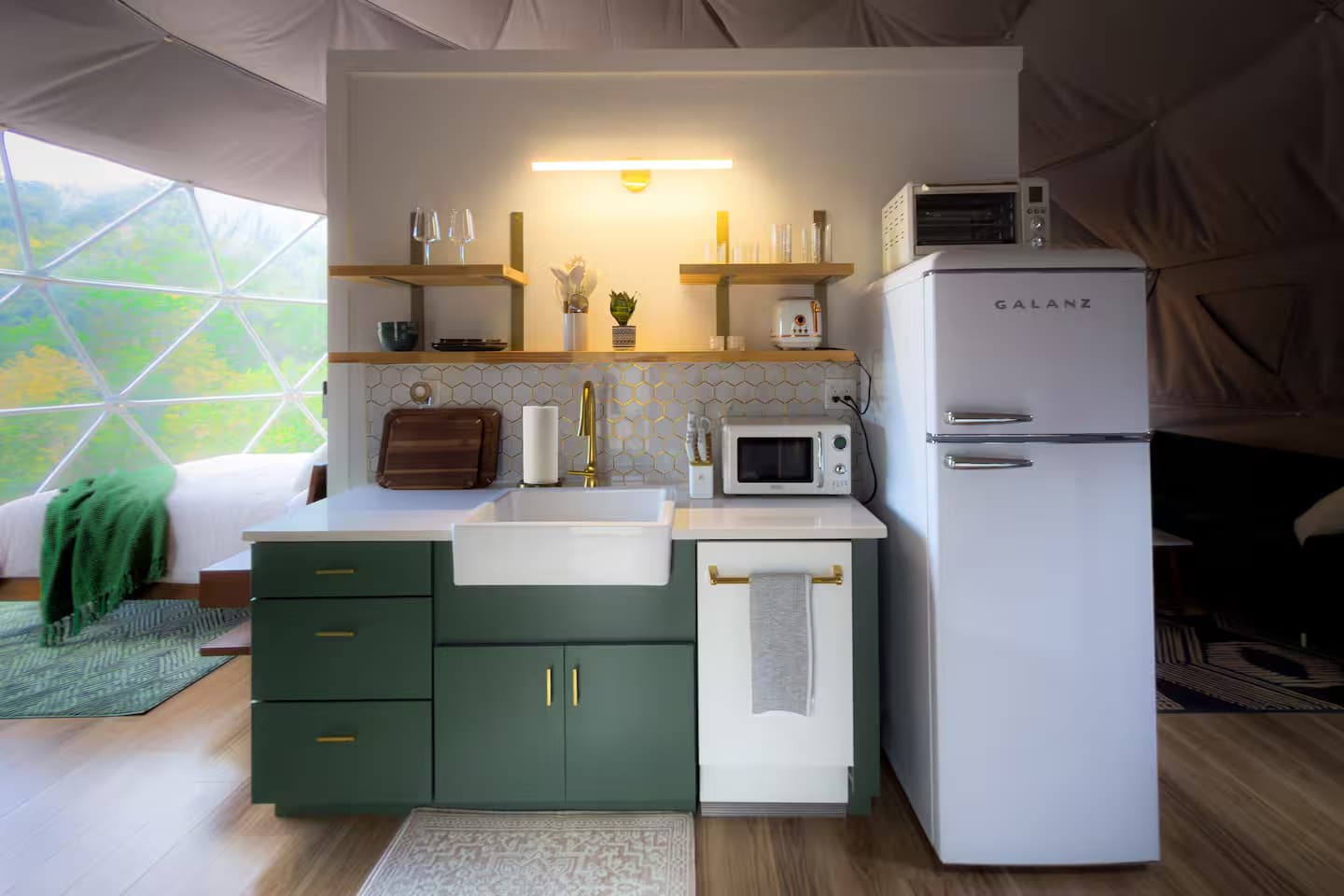

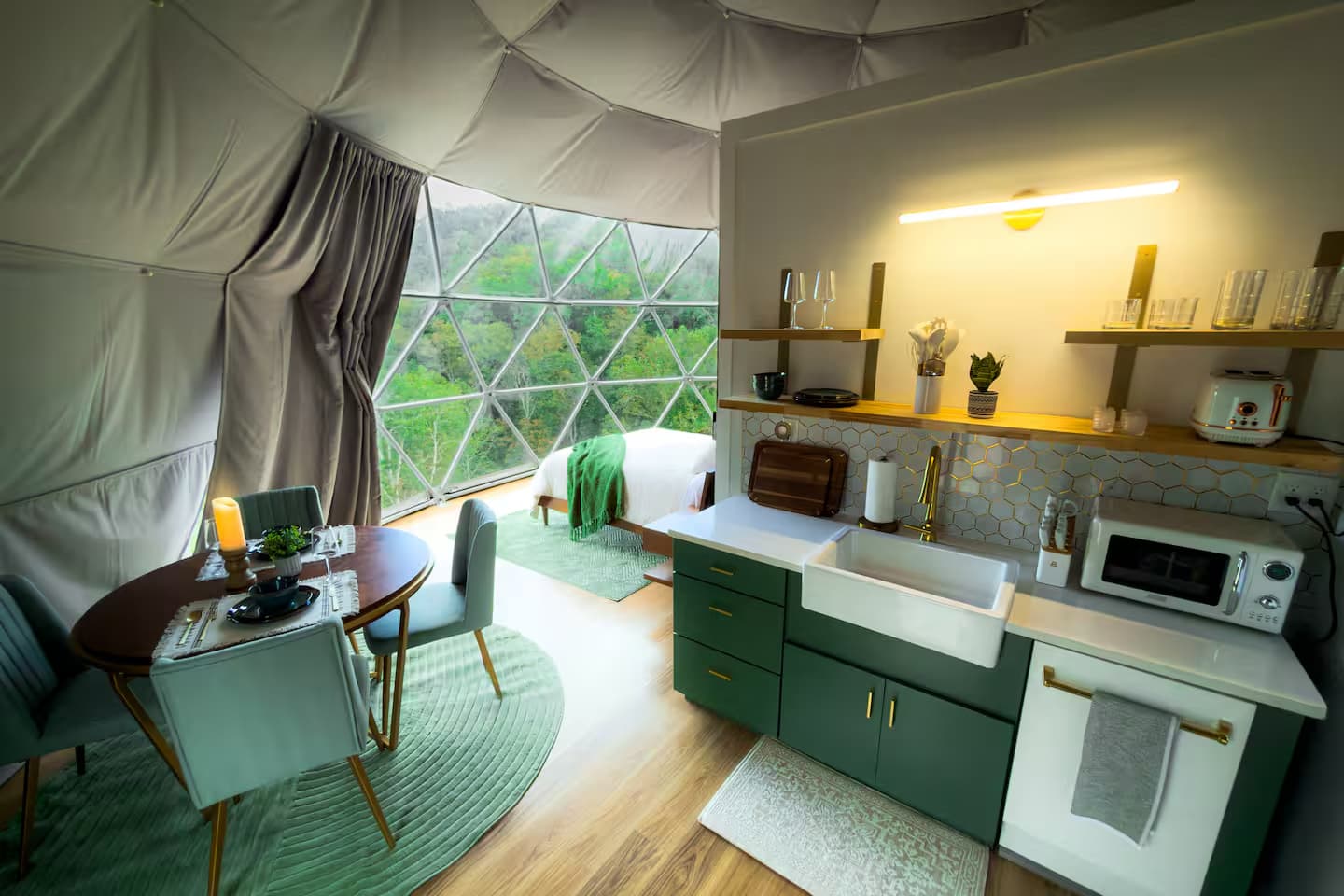

The 9m Stargazer dome is best suited for a family or collaborative workspace. With 685 sq ft of space, it can be customized with a kitchenette and bathroom.
Specifications
Dimensions
- Skylight dimension
- 30"
- Circle PVC window diameter
- 20" (inoperable, fixed)
- Circle glass window diameter
- 18" (operable)
- Floor area
- 685 ft²
- Double door frame inside width
- 7' 9"

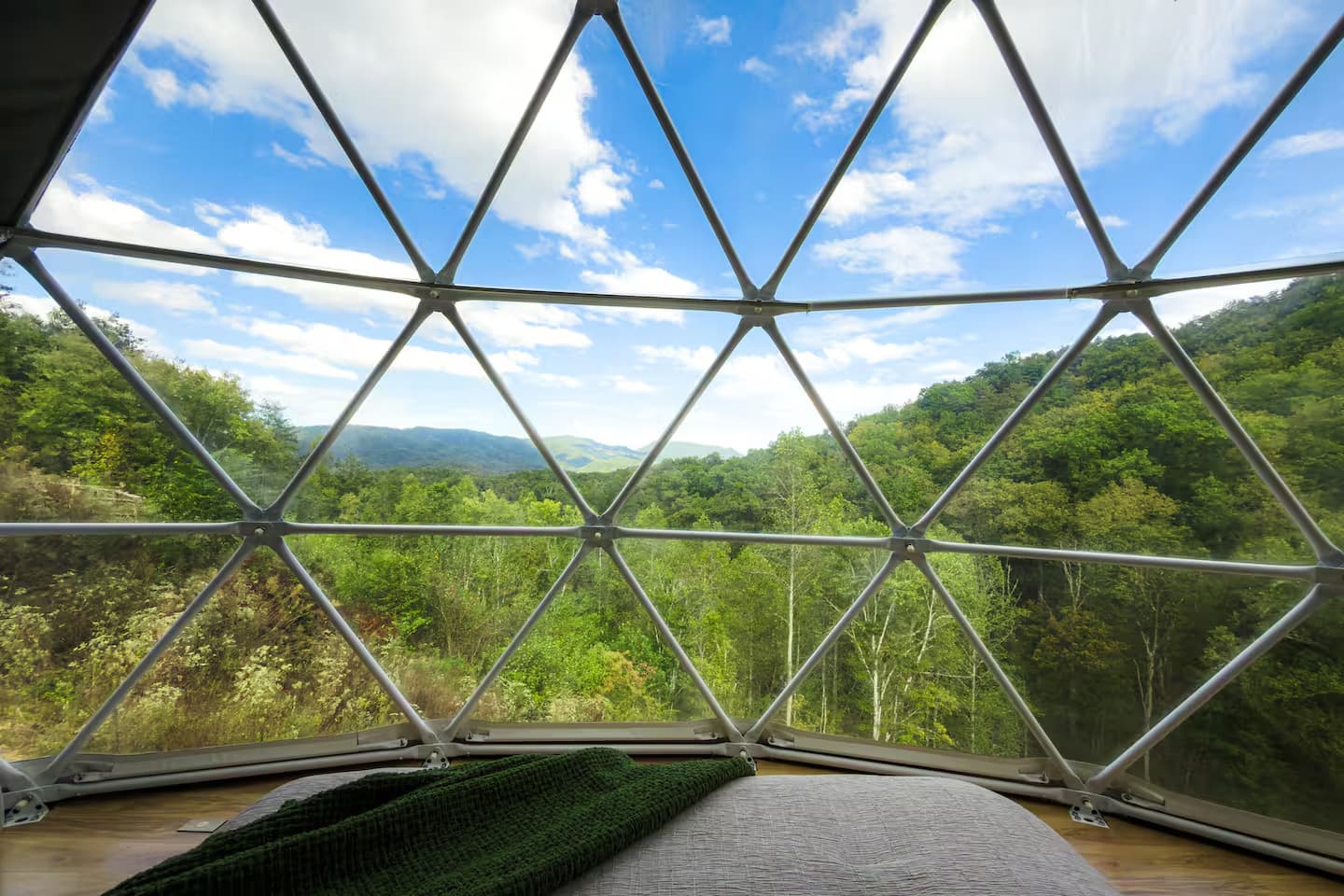

- Clear view structure window height
- 83"
- Triangle roll-up window width
- 32"
- Snow accumulation area diameter
- 13.1 ft
- Diameter
- 29' 6"
- Skylight height
- 92"
- Clear view structure window width
- 72"
- Double door frame inside height
- 83"
- Single door frame inside width
- 36"
- Center height
- 14' 9"
- Single door frame inside height
- 88"
Structure
- Maximum Von Mises stress (governing case)
- 12 MPa
- Standard framework thickness
- 32mm x 2mm
- Wind rating
- 150 mph
- Weight
- 800 kg
- Framework thickness upgrade
- 42mm x 2.5mm
- Structure design
- 4V
- Self-weight
- 487 kg
- Snow load
- 80 psf
Materials
- Dead load (fabric)
- 0.048 kPa
General
- Strut specification
- 32mm x 2.0mm round tube
- Maximum deflection (governing case)
- 0.88 mm
Gallery

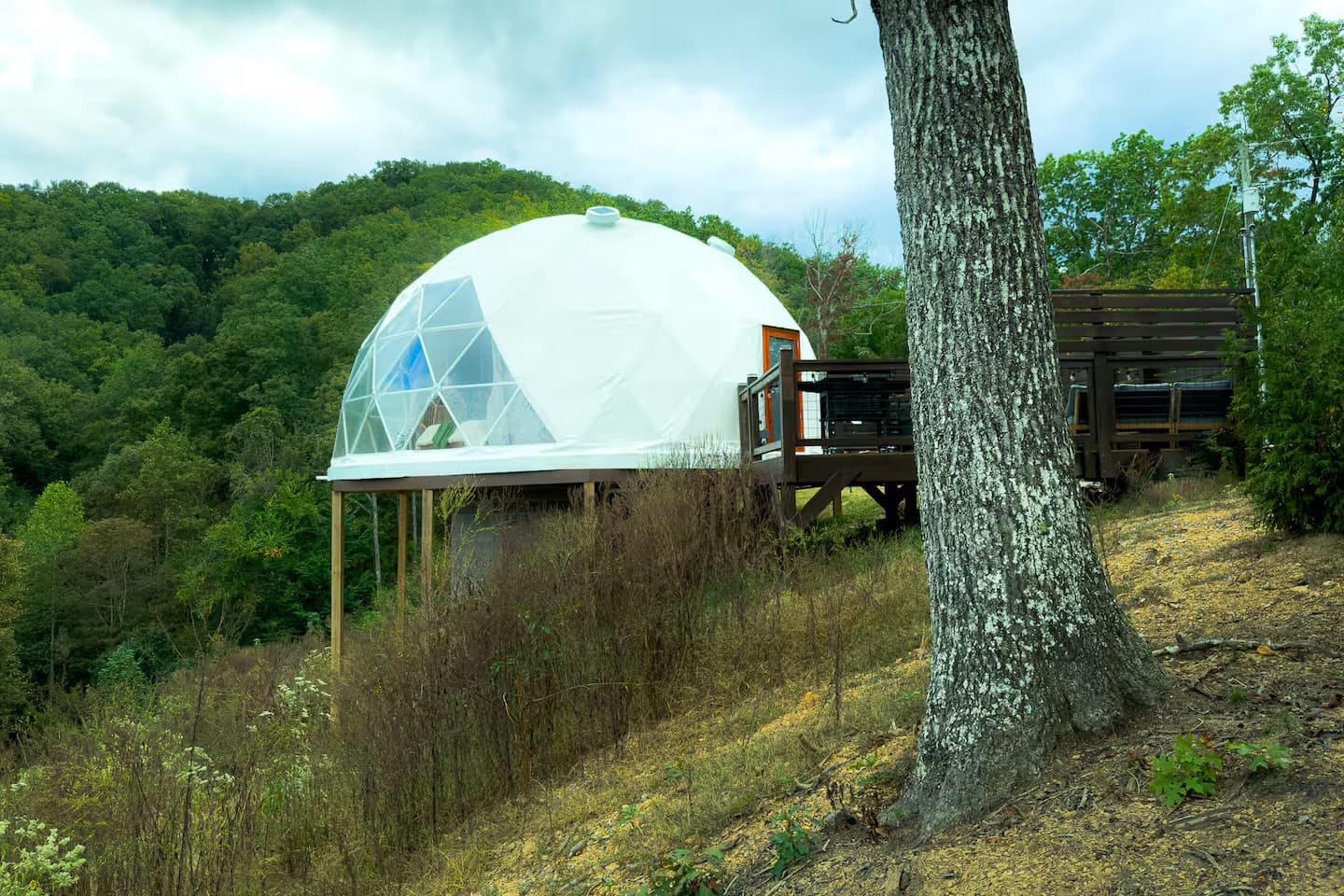

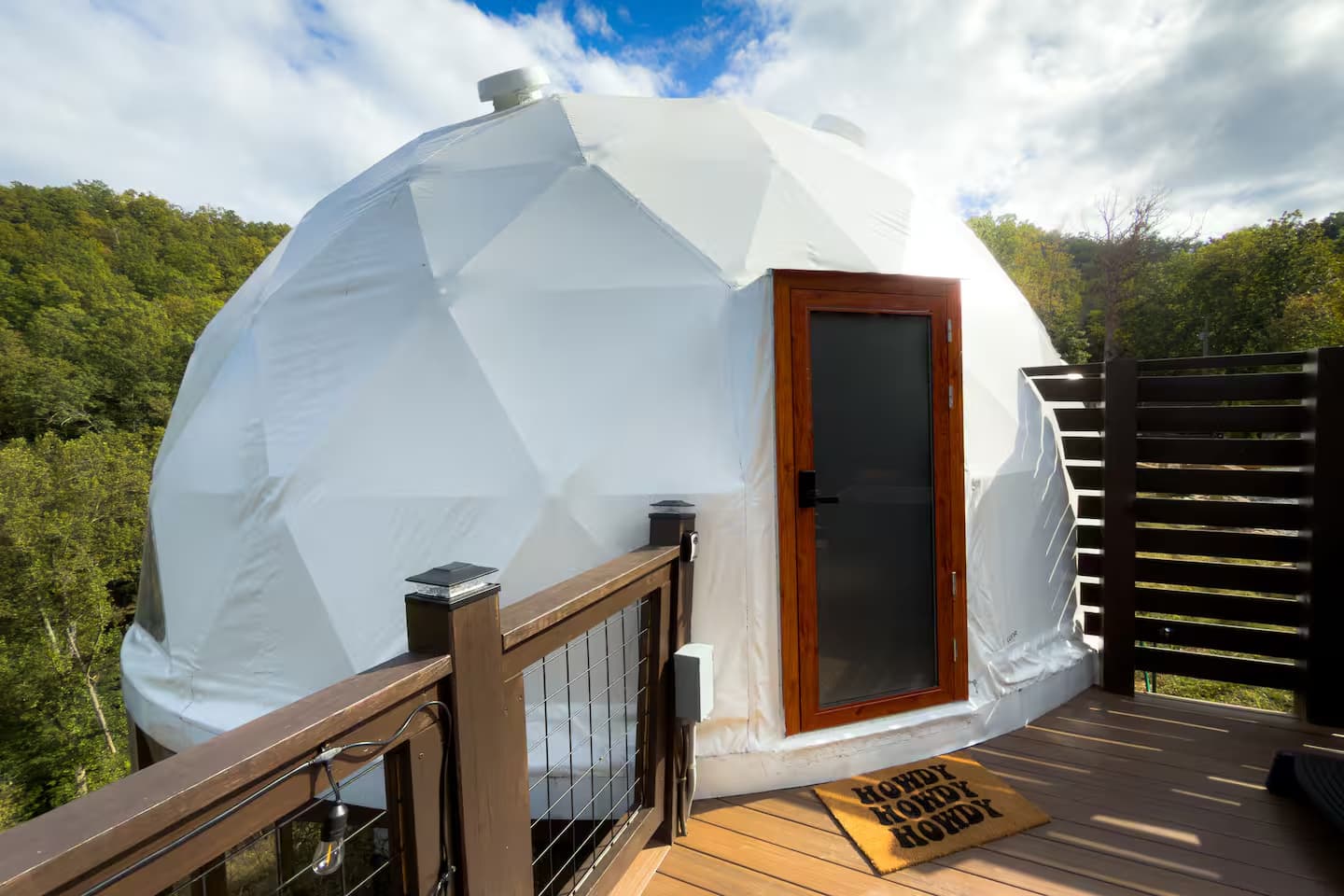

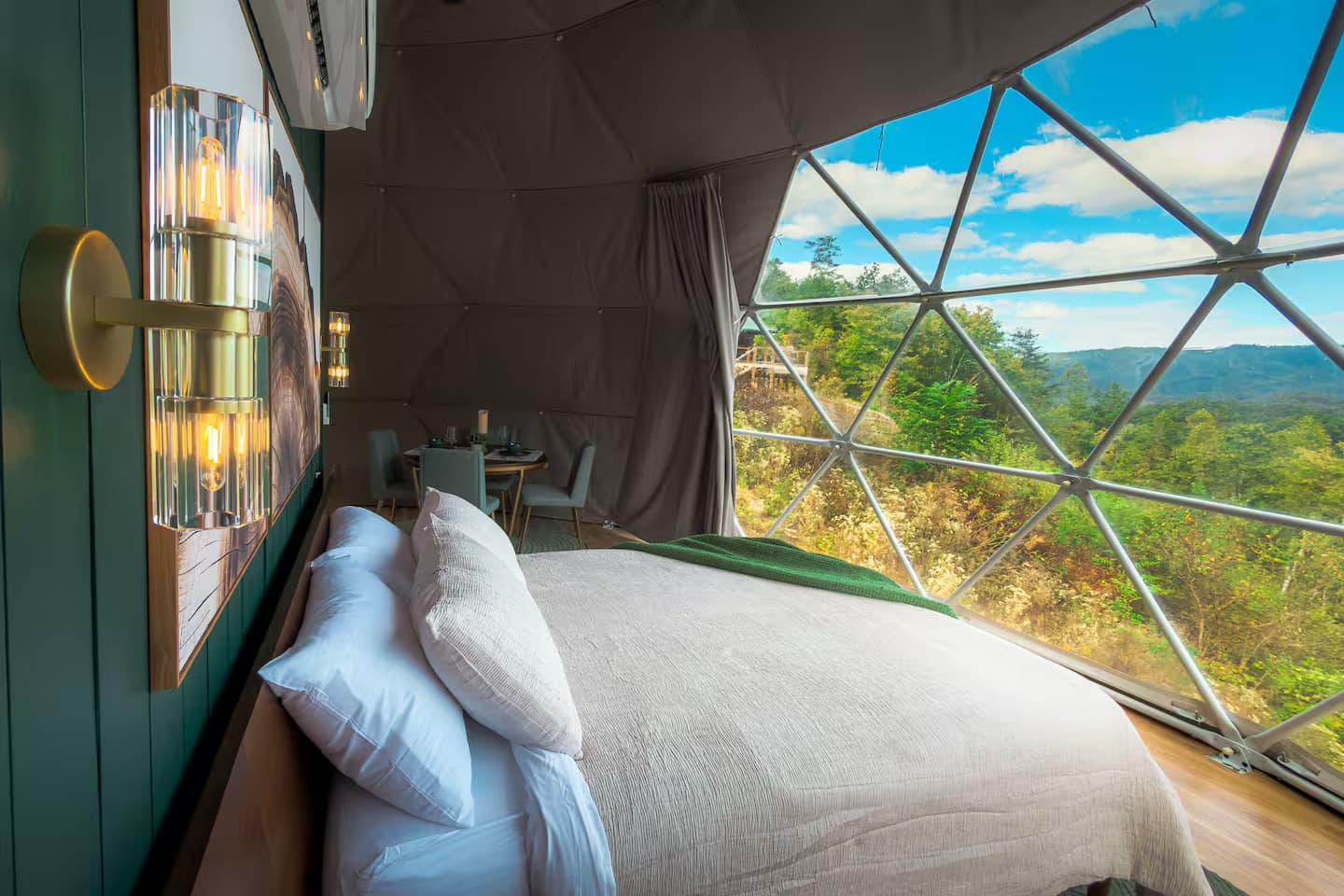

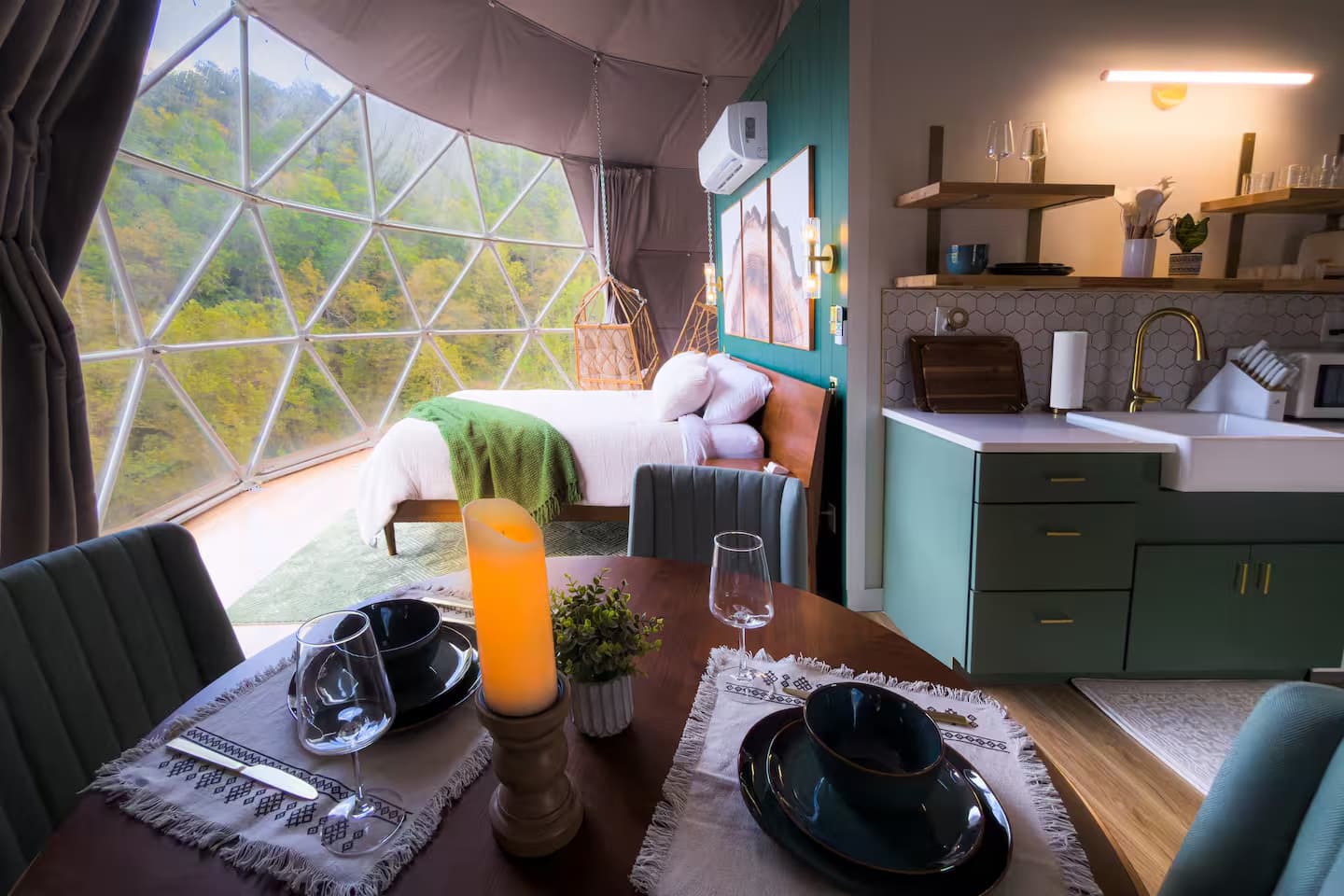

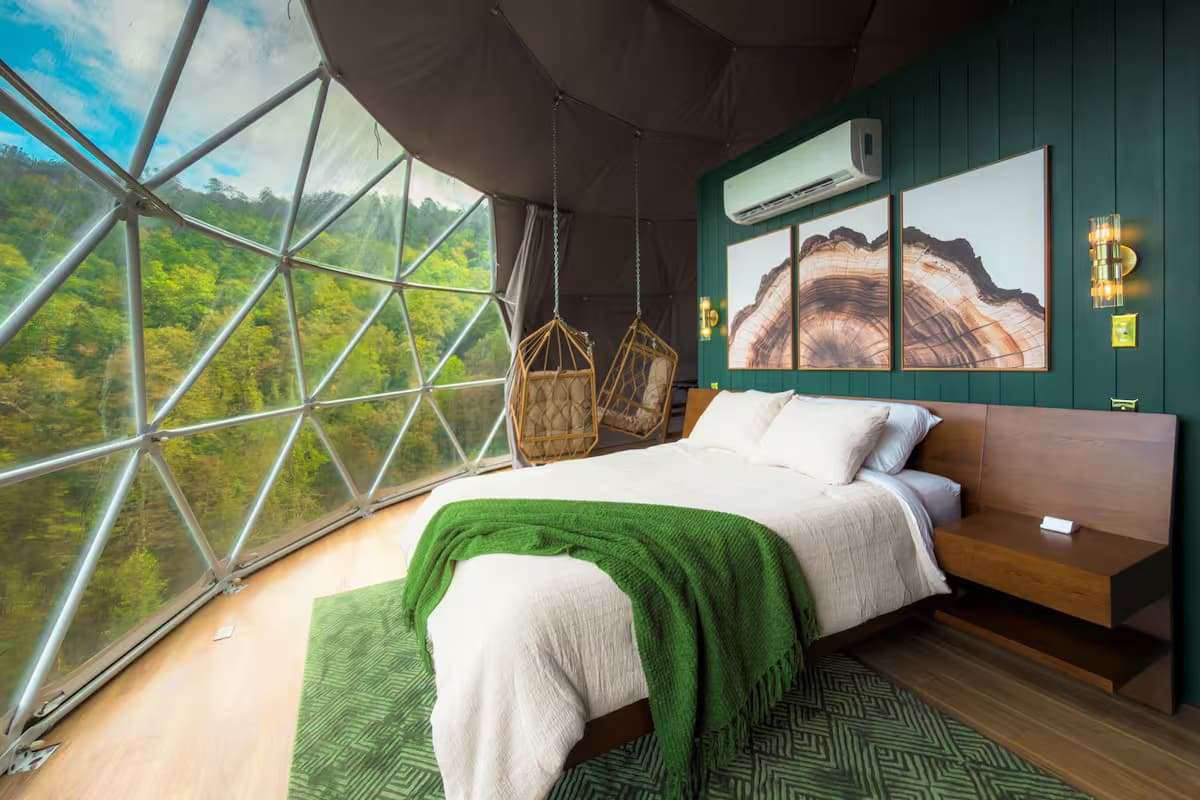

12 images01 / 12

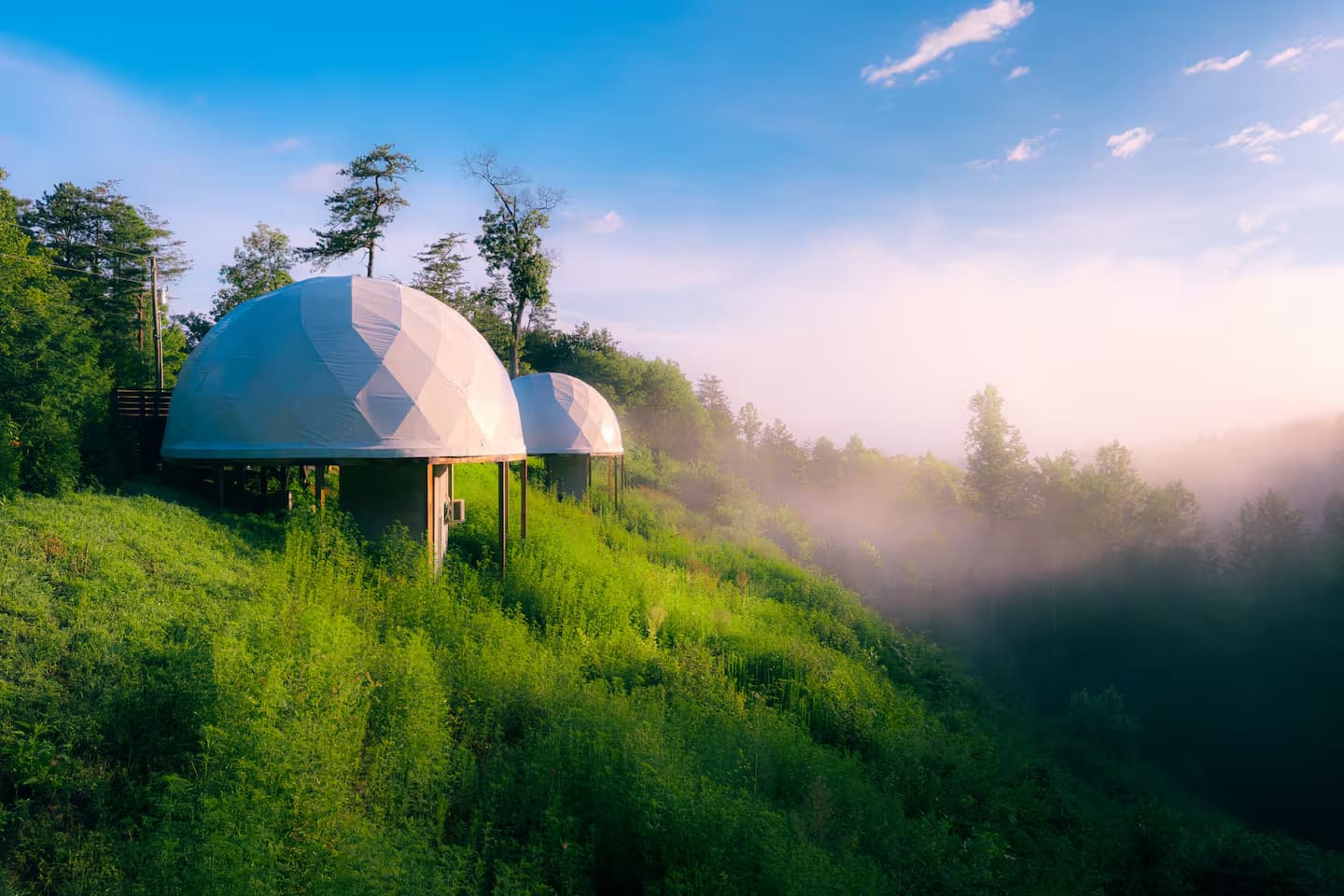

Installations
