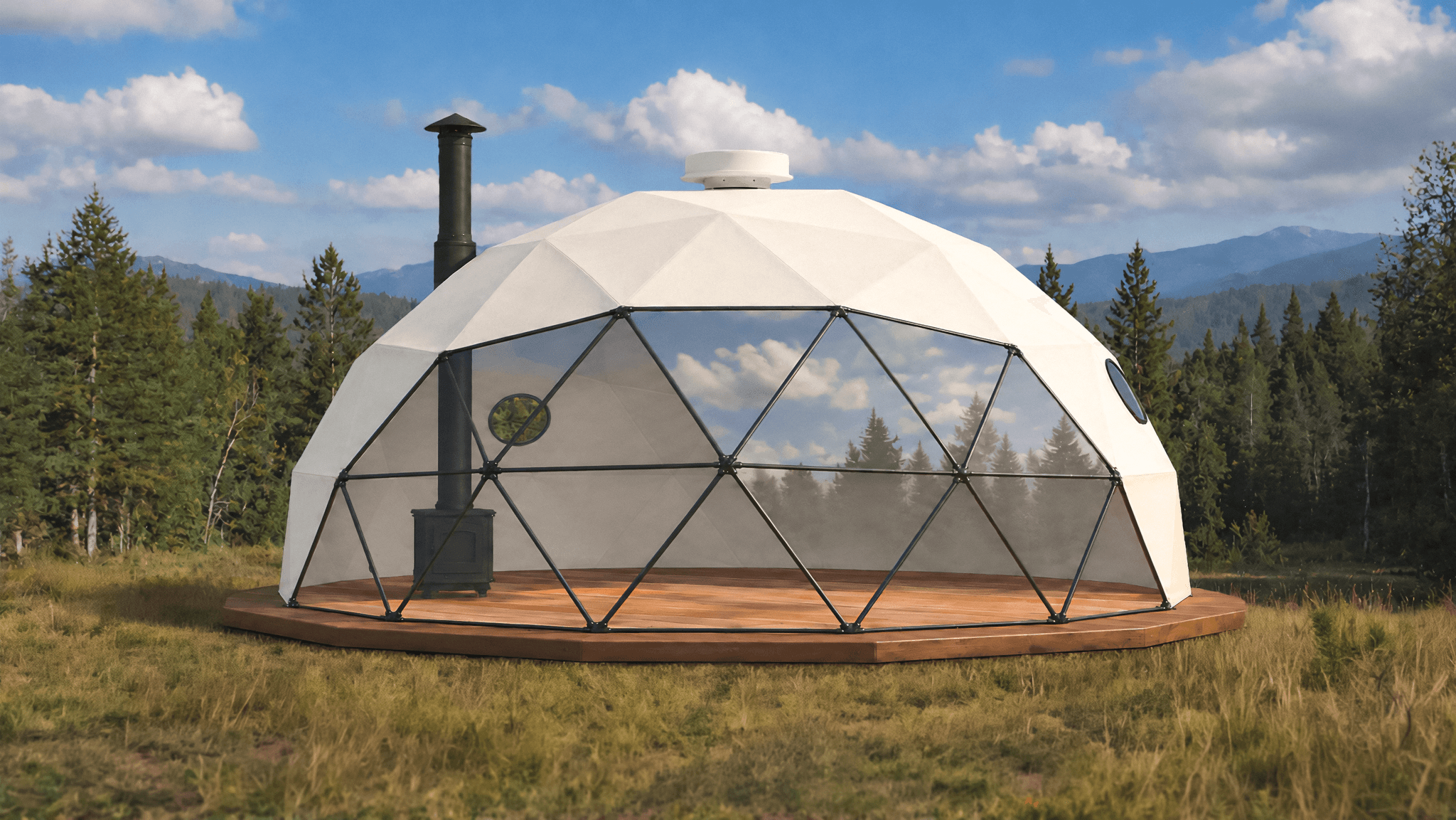

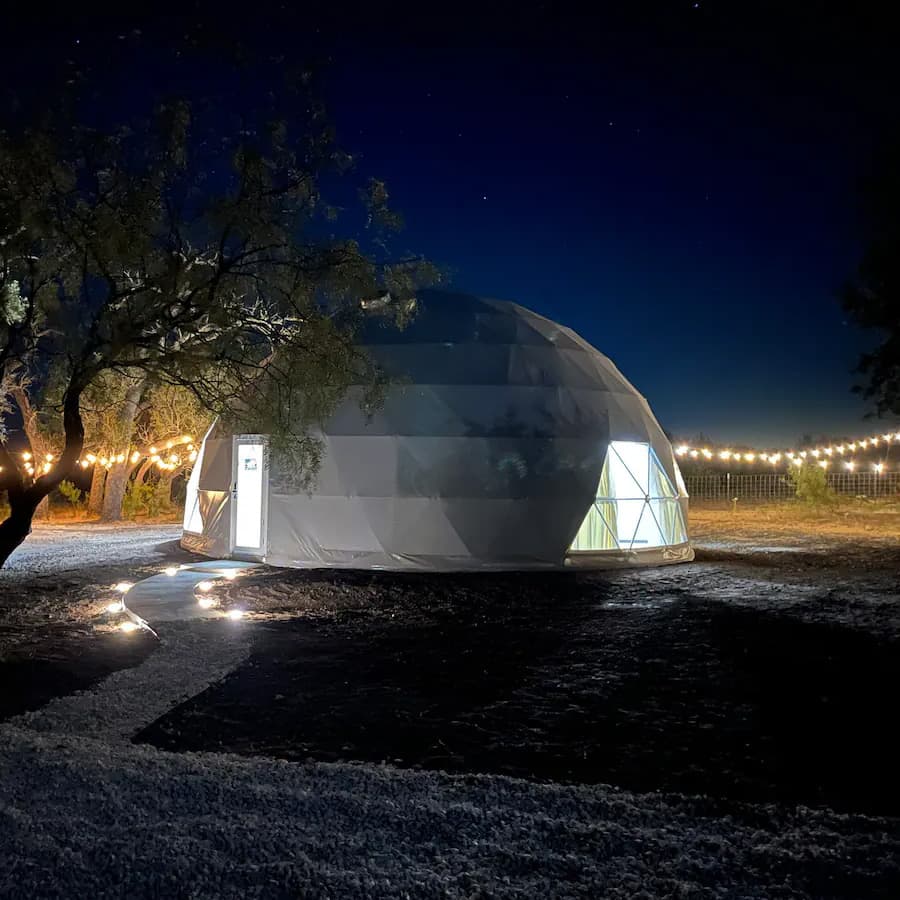

10m Stargazer Geodesic Dome
About

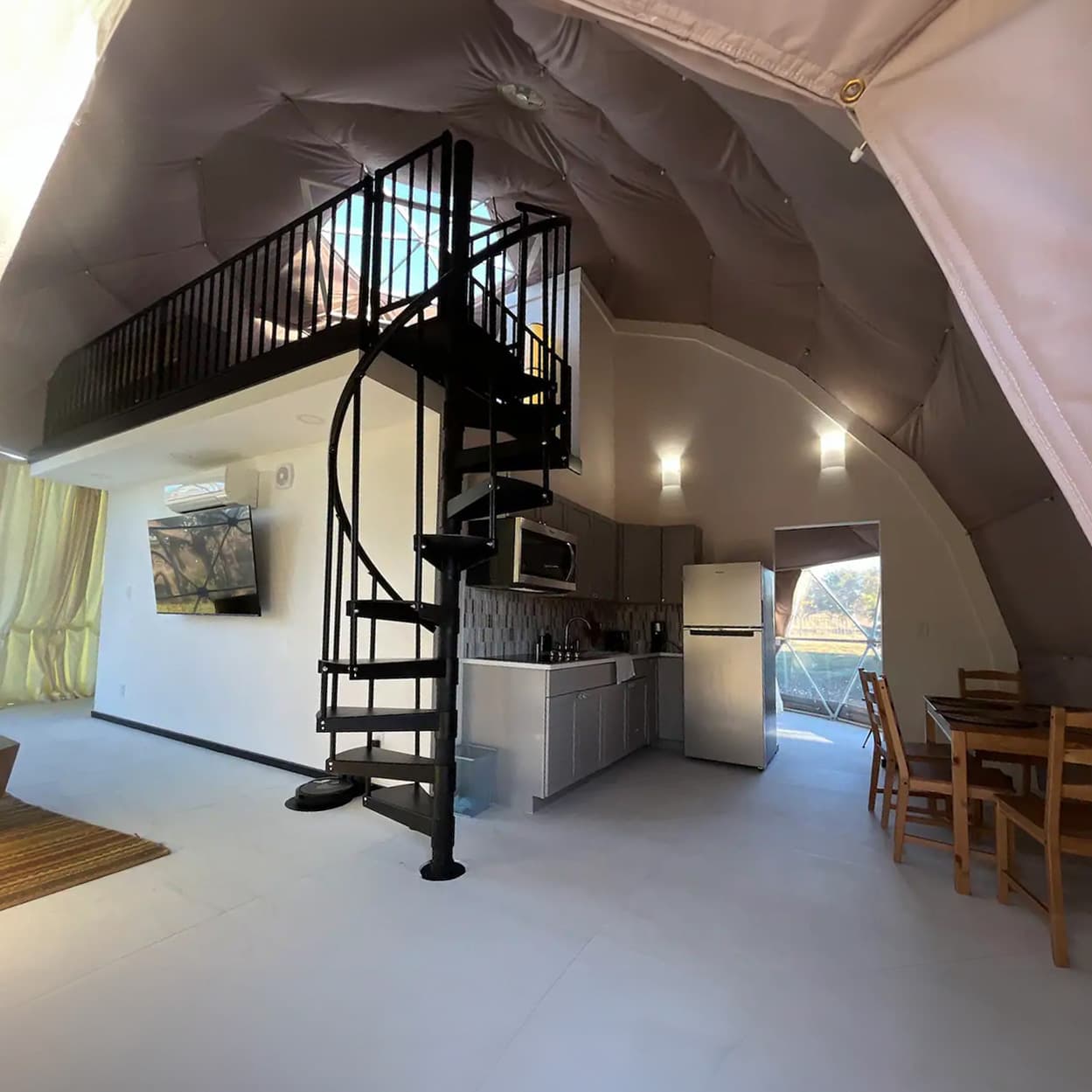

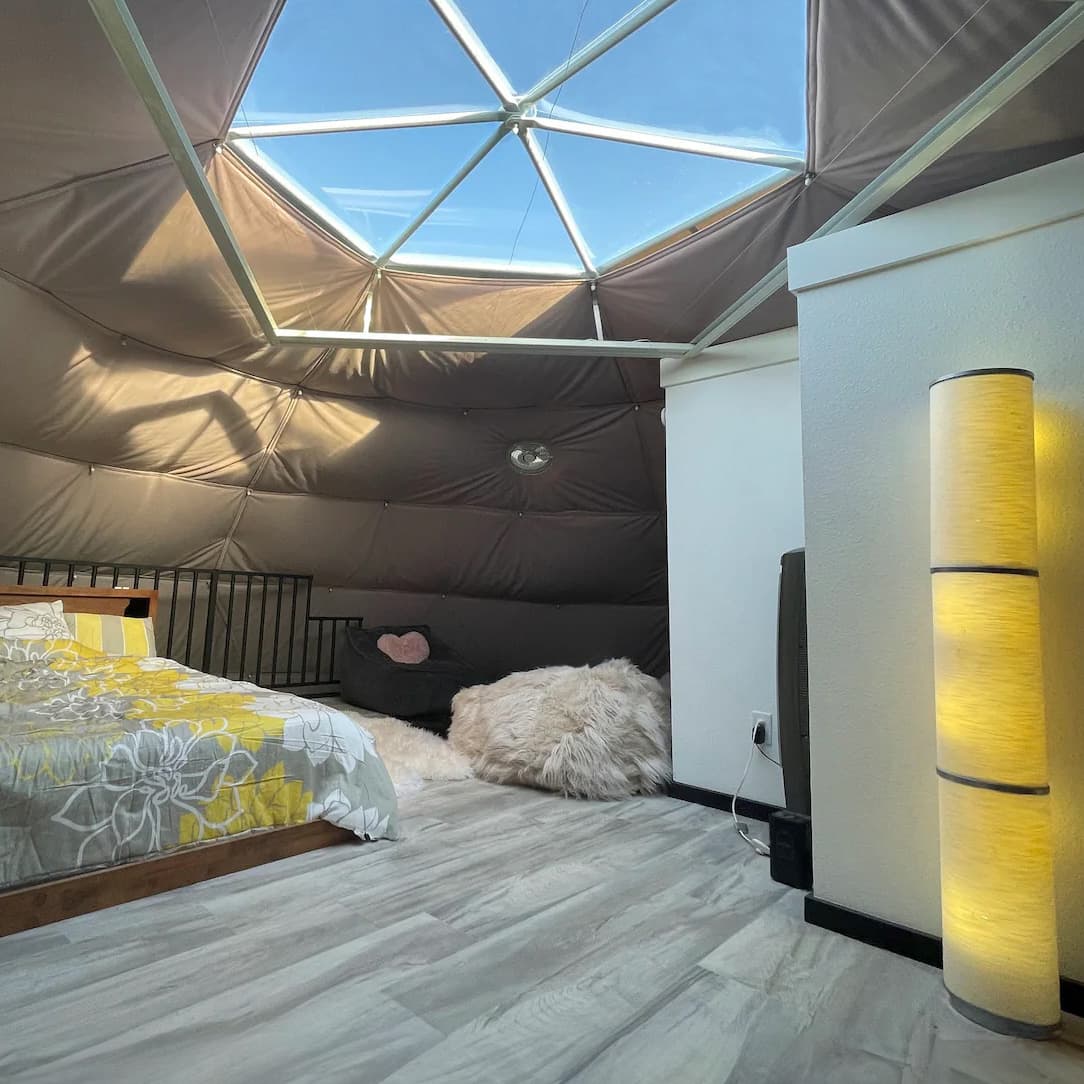

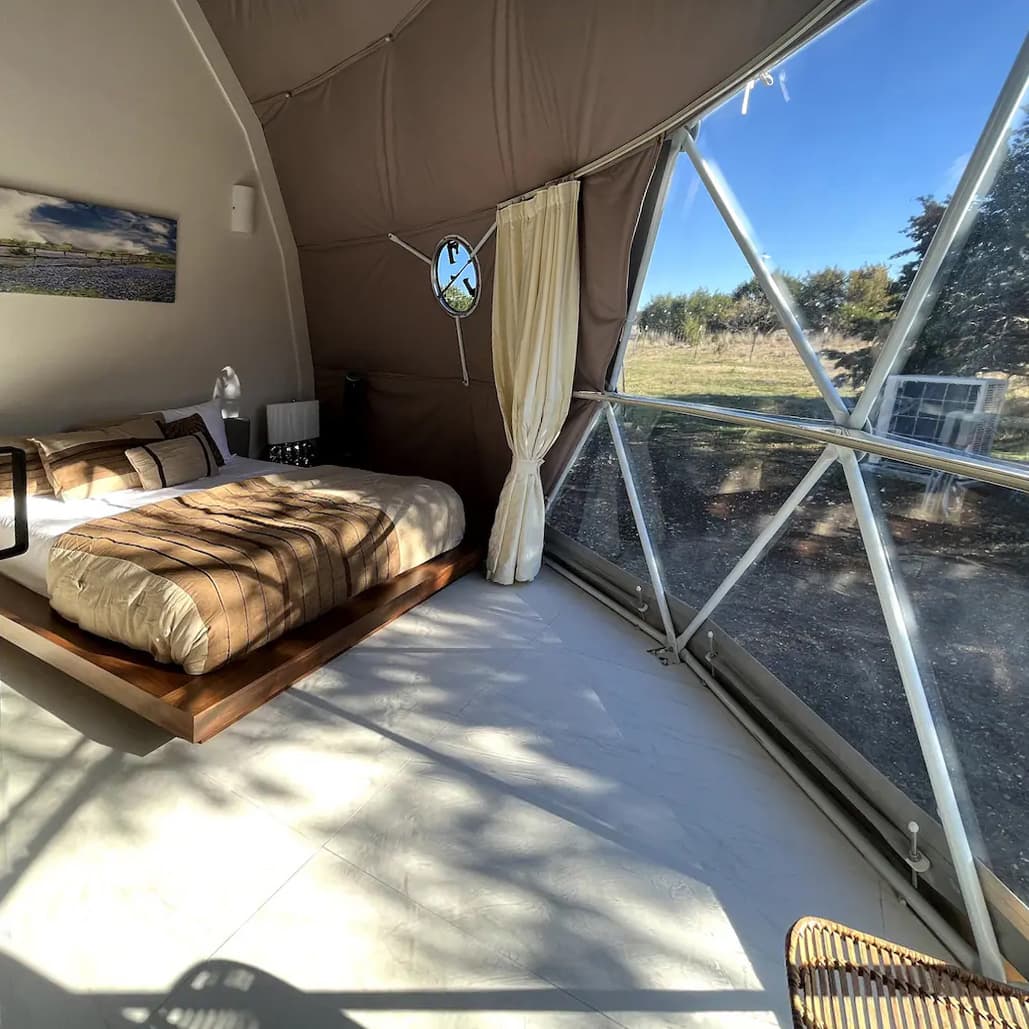

The 10m Stargazer dome is best suited for a family or collaborative workspace. With 845sq ft of space, it can be customized with a kitchenette and bathroom.
Specifications
Dimensions
- Ridge height (skylight top)
- 102"
- Center height
- 16' 5"
- Skylight diameter
- 18"
- Floor area (plywood bottom)
- 873 sqft
- Wall height
- 8' 8"
- Floor area
- 845 ft²
- Platform length (joists direction)
- 10201.10mm
- Floor area (plywood top)
- 873 sqft
- Double door frame inside width
- 83"
- Single door frame inside width
- 3' 10"
- Circle glass window diameter
- 18" (operable)
- Diameter
- 10000mm
- Circle PVC window diameter
- 20" (inoperable, fixed)
- Floor area (plywood)
- 873 sqft
- Double door frame inside height
- 4' 10"
- Single door frame inside height
- 83"
- Platform width
- 10151.09mm
Structure
- Structure design
- Kiewitt 6K
- Snow load
- 3.83 kPa / 4.79 kPa
- Standard framework thickness
- 42mm x 2.5mm
- Wind rating
- 100mph / 125mph
- Maximum Von Mises stress
- 16.1 MPa (governing load case 7); 8.18 MPa (10m Kiewitt Dome max)
- Structure weight
- 800 kg
- Framework thickness upgrade
- 48mm x 3mm
Openings
- Triangle roll-up window
- 37"
General
- Strut size
- 42mm x 2.5mm round tube
- Maximum displacement
- 0.6 mm (governing load case 7); 0.33 mm (10m Kiewitt Dome max)
